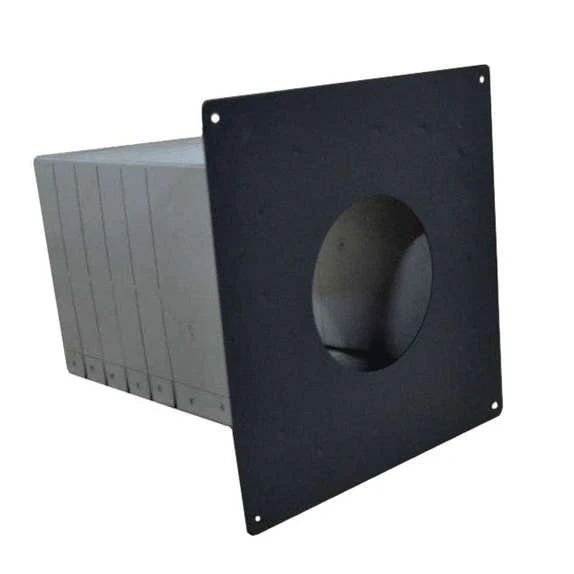

Rock-Vent Pellet Pipe Wall Pass-Thru

The Rock-Vent Pellet Pipe Wall Pass-Thru is used for through-the-wall installations. The Wall Pass-Thru is adjustable to accommodate various wall thicknesses ranging from 4 to 9 inches. The interior cover plate features a painted black surface for a professional & finished look inside the home. The exterior cover plate is galvalume. The Wall Pass-Thru is most commonly used with a tee connector when the pellet pipe needs to run up the exterior side of the home / structure.

If the outside of the structure is aluminum or vinyl siding, you need to use the Siding Trim Kit along with the Wall Pass-Thru to ensure a leak-free pass thru.

Measurement Chart:

Pellet Vent Wall Pass Thru Thimble

	3”	4”
YY	4”-9”	4”-9”
A	5.75”	6.75”
B	3.9”	4.9”
C	9”	10”
E	10.5”	11.5”

*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
